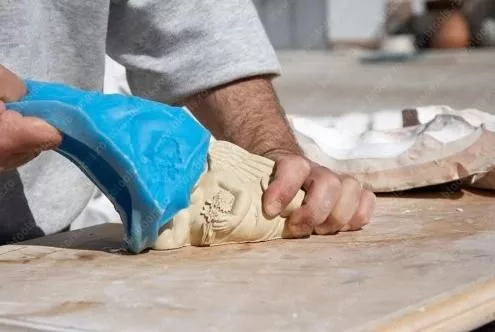

ZA 22 MOULD in different packages

Types:

Pack:

Bicomponent (base and catalyst) addition RTV silicon rubber that vulcanizes at room temperature. Indicated for the duplication of models with small recesses. Hardness: 22 shore A. Color: blue

Main Fields of Application:

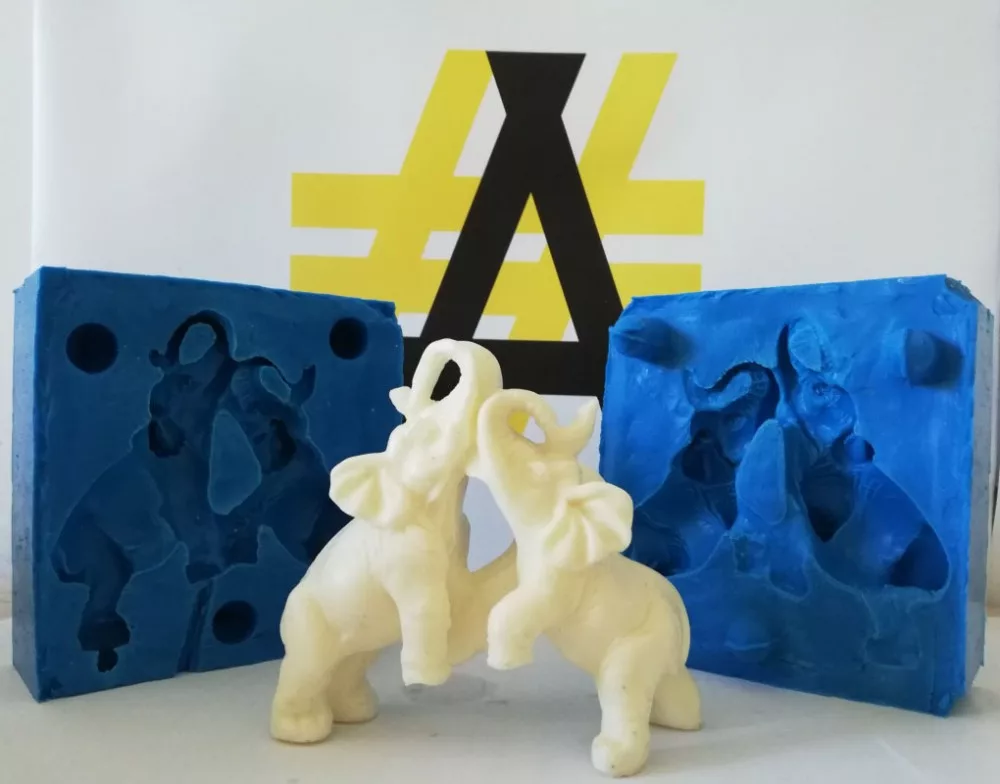

Mould-making (for its remarkable reproduction accuracy, high dimensional stability and high mechanical
strength). Please before the silicone goes in contact with polyurethane resin , please contact us.
Concrete moulding (for its remarkable reproduction accuracy, high mechanical strength).

Details Info Opinions

Chemical and Physical Properties
Mixing ratio	1 : 1
Viscosity of pre-catalyzation mixture	4000 ± 300 cP
Mixing time at 23 °C	1’
Working time at 23 °C WT	14’ – 17’
Setting time at 23 °C ST	60’
Shore A hardness after 24 hours	21 ± 2 ShA
Breaking load	4.0 ± 0.2 N/mm2
Elongation at break	380±20 %
Tear strength	>20 ± 1 N/mm
Reproduction of details	2 micron
Dimensional vartation after 24 hours	< 0.05 %

Processing time
14-17

Curing time (Hours)
1 óra
